Components and Components Location: Components

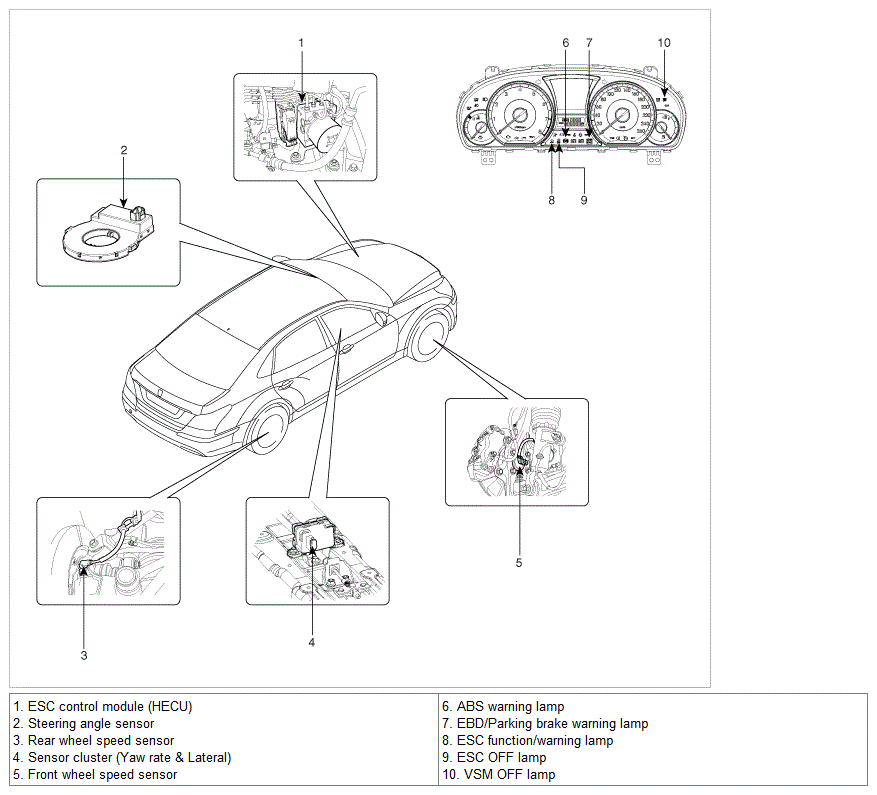

Fig 1: Identifying ESC System Components
G08833061Courtesy of HYUNDAI MOTOR AMERICA
