Variant coding

  1. Connect scantool to Data Link Connector (DLC).
  2. IG "ON"
  3. Using GDS, Perform Variant coding program. (Fig 1)
  4. IG "OFF" and wait for about 10 seconds, and then IG "ON"
  5. IG "OFF" and wait for about 10 seconds again, and then, IG "ON
  6. Go to "COMPONENT INSPECTION " procedure.

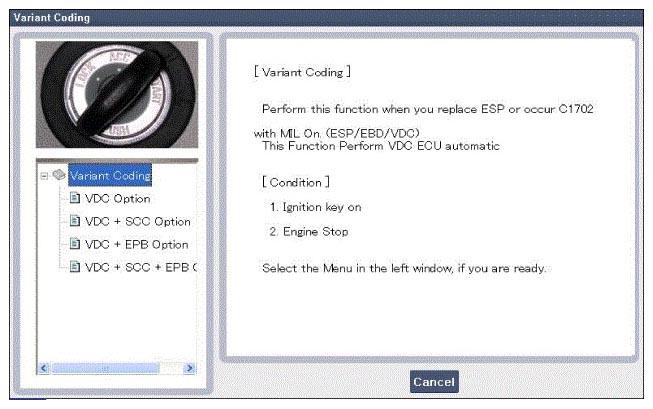

    Fig 1: Display - GDS Diagnostic Item Variant Coding Screen
    G08826529Courtesy of HYUNDAI MOTOR AMERICA
