ESC Module Connector End View (E15)

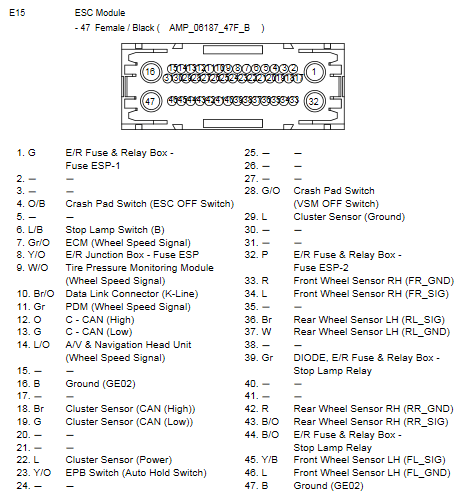

Fig 1: ESC Module Connector End View (E15)
G10733387Courtesy of HYUNDAI MOTOR AMERICA
