Front To Front End Module Harness Connection Connector End View (EE21)

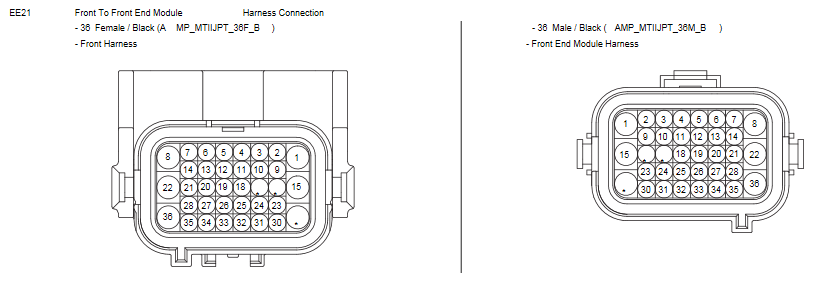

Fig 1: Front To Front End Module Harness Connection Connector End View (EE21)
G10733749Courtesy of HYUNDAI MOTOR AMERICA
