I/P Junction Box RH Connector End View (I/P-RHB)

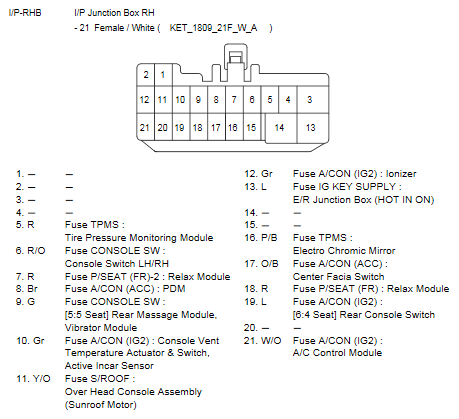

Fig 1: I/P Junction Box RH Connector End View (I/P-RHB)
G10733694Courtesy of HYUNDAI MOTOR AMERICA
