A/C Control Module Connector End View (M07-A)

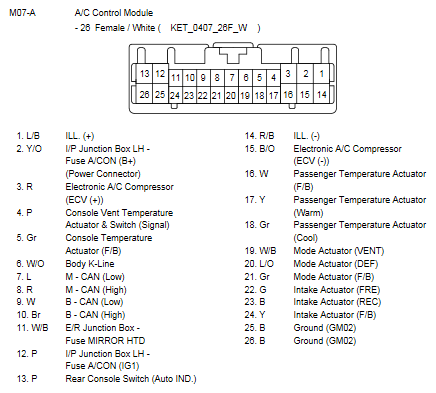

Fig 1: A/C Control Module Connector End View (M07-A)
G10733258Courtesy of HYUNDAI MOTOR AMERICA
