A/C Control Module Connector End View (M07-C)

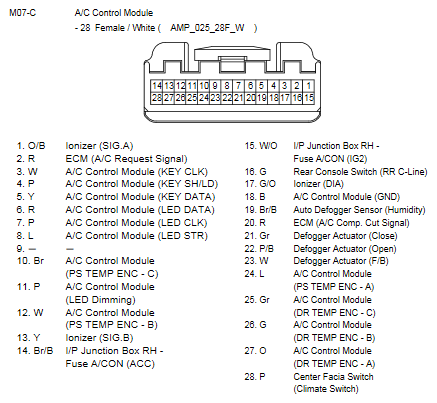

Fig 1: A/C Control Module Connector End View (M07-C)
G10733260Courtesy of HYUNDAI MOTOR AMERICA
