Media Module Connector End View (M45-A)

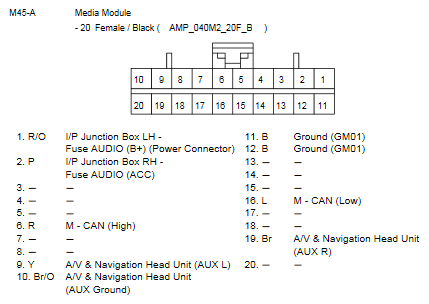

Fig 1: Media Module Connector End View (M45-A)
G10733286Courtesy of HYUNDAI MOTOR AMERICA
