Multifunction Switch (Remote Control) Connector End View (M13)

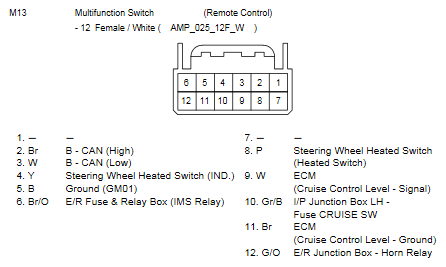

Fig 1: Multifunction Switch (Remote Control) Connector End View (M13)
G10733268Courtesy of HYUNDAI MOTOR AMERICA
