SRS Control Module Connector End View (M71-A)

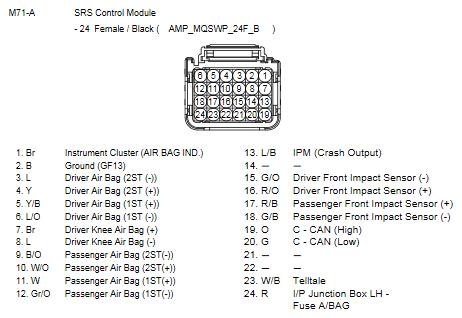

Fig 1: SRS Control Module Connector End View (M71-A)
G10733304Courtesy of HYUNDAI MOTOR AMERICA
