Service Data Analysis

IG "OFF" and connect GDS.
IG "ON" and select "Current Data" menu.
Check the service data of Shift Lever P Position.
Specification: When the shift lever is positioned at P: ON, at the other range: OFF

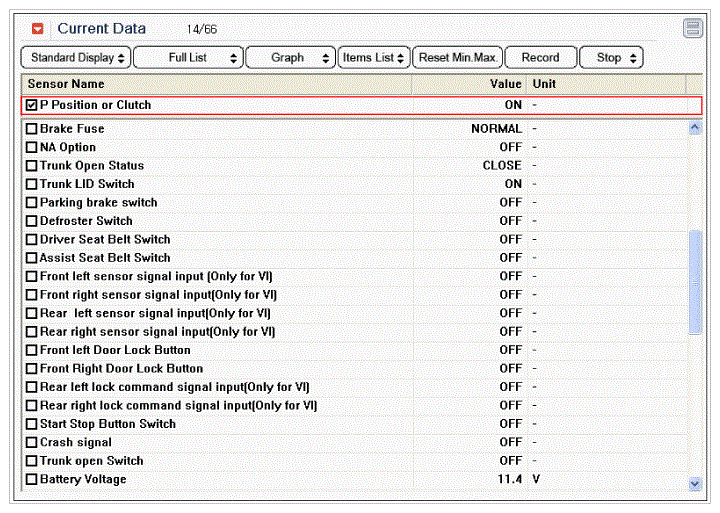

Fig 1: Display - P Position Or Clutch Current Data
Courtesy of HYUNDAI MOTOR AMERICA
Is the service data within specifications?
YES

Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

NO

Check the P Position Switch and the related circuit. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
