Components and Components Location: Component

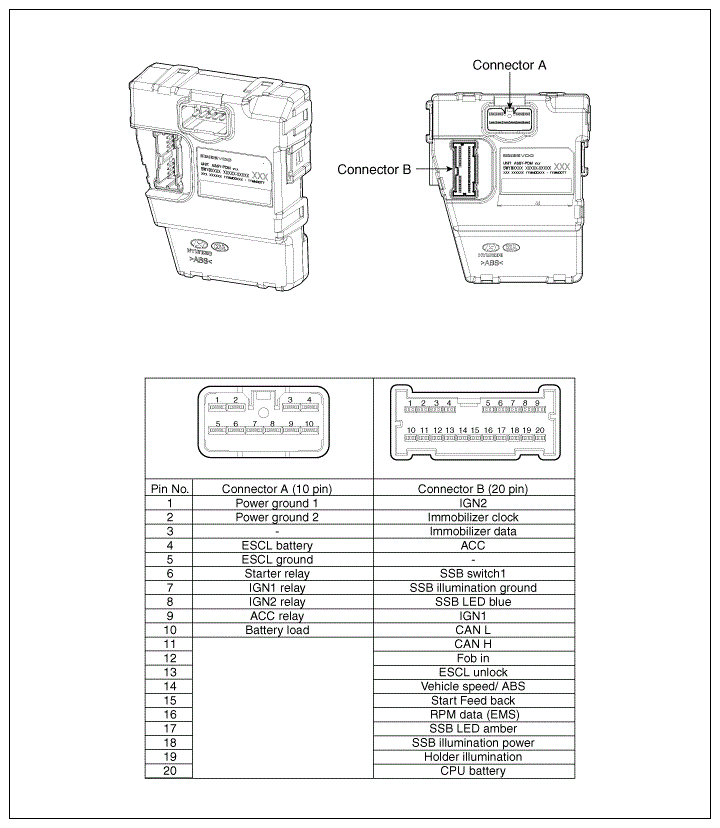

Fig 1: Identifying Power Distribution Module Connector Terminals
G08831811Courtesy of HYUNDAI MOTOR AMERICA
