Home › Hyundai › 2012 › Equus Signature › Repair and Diagnosis › Electrical › Starter › Button Engine Start System › Start/Stop Button › Components and Components Location › Component

Components and Components Location: Component

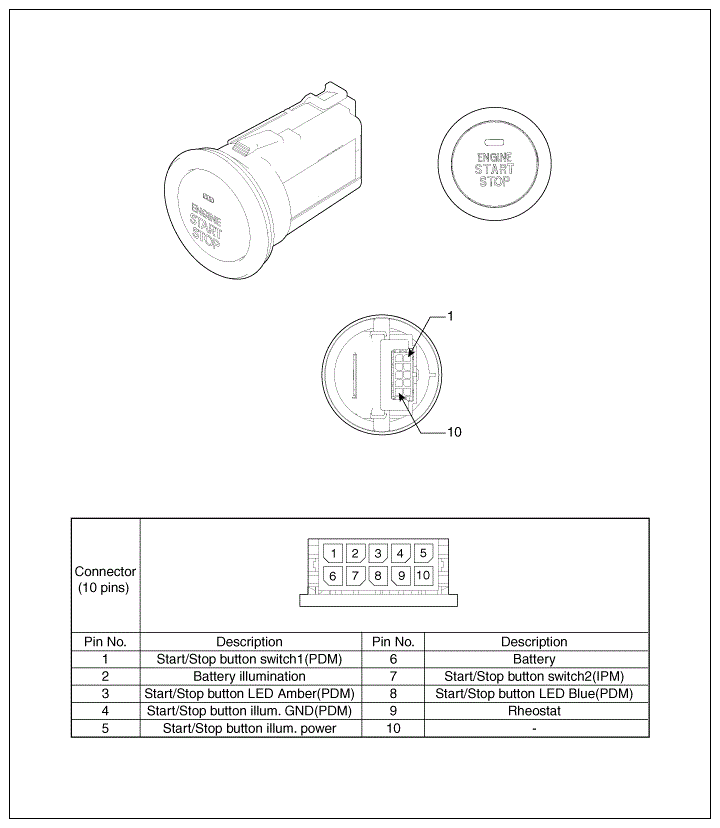

Fig 1: Identifying Start/Stop Button With Connector Terminals
G08831804Courtesy of HYUNDAI MOTOR AMERICA
