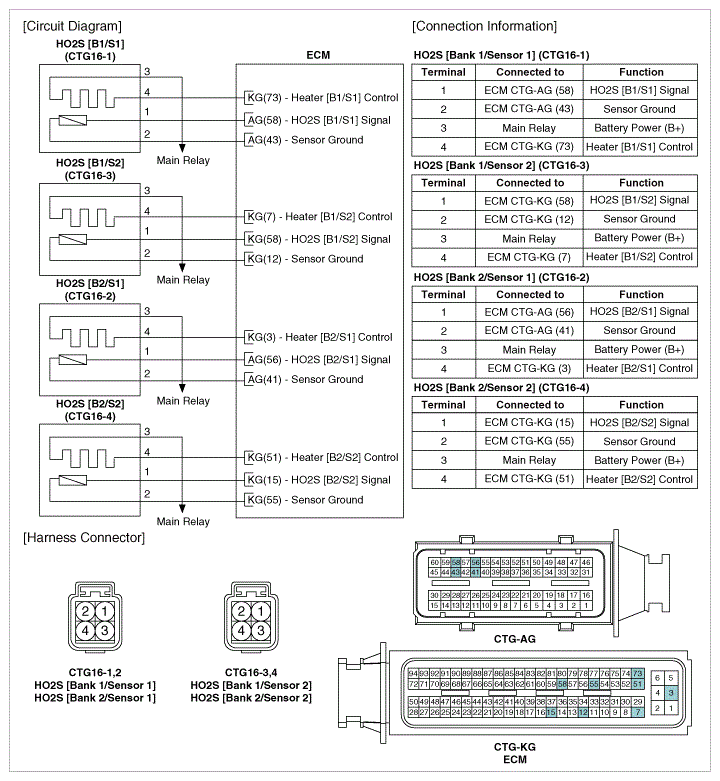

Home › Hyundai › 2012 › Equus Signature › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 5.0L › Heated Oxygen Sensor (HO2S) › Schematic Diagrams › Circuit Diagram
