Engine Control System - 5.0L
›
Injector Drive Box (IDB)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

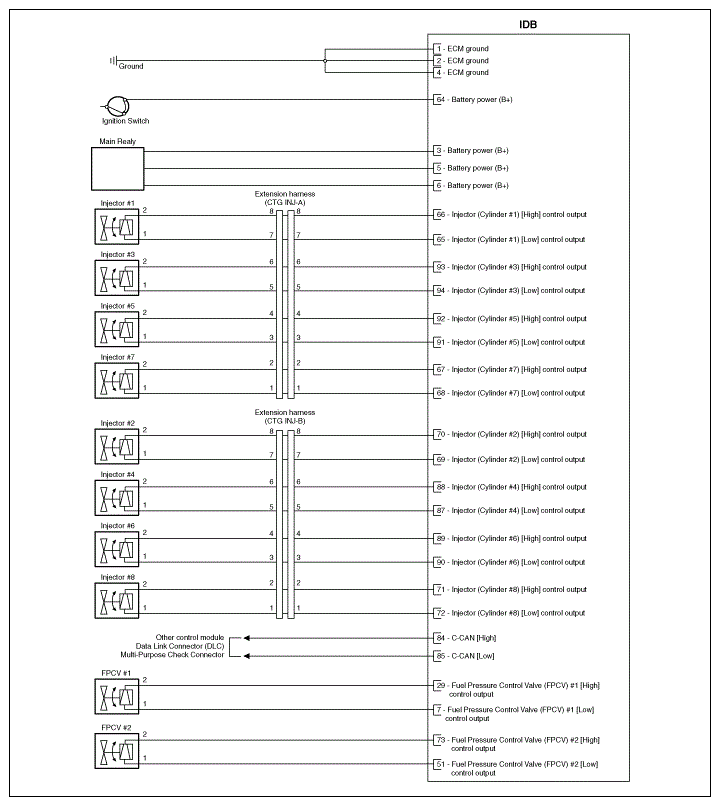

Fig 1: IDB - Circuit Diagram (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: IDB - Circuit Diagram (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
