CAN Communication Line Inspection

CAN Communication Line Inspection 1
1. IG key "OFF".
2. Connect all of control module connector
3. Measure resistance between DLC connector terminal No. 3 and No. 11
  Specification: About 60 Ω

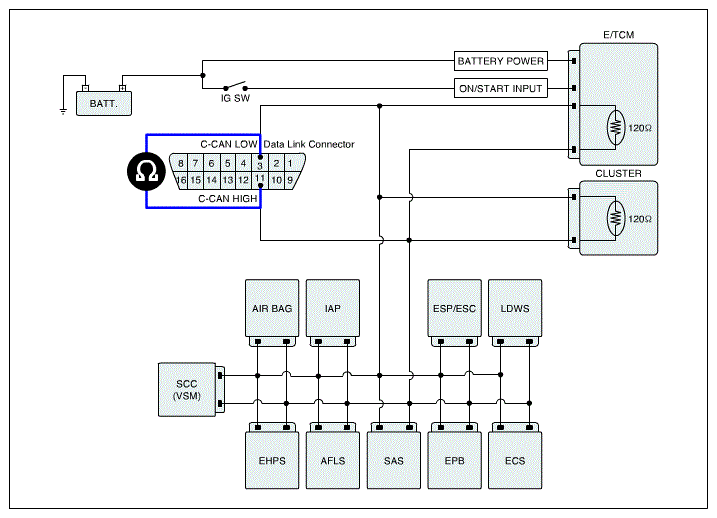

  Fig 1: Measuring Resistance Between DLC Connector Terminal No. 3 And No. 11
  Courtesy of HYUNDAI MOTOR AMERICA

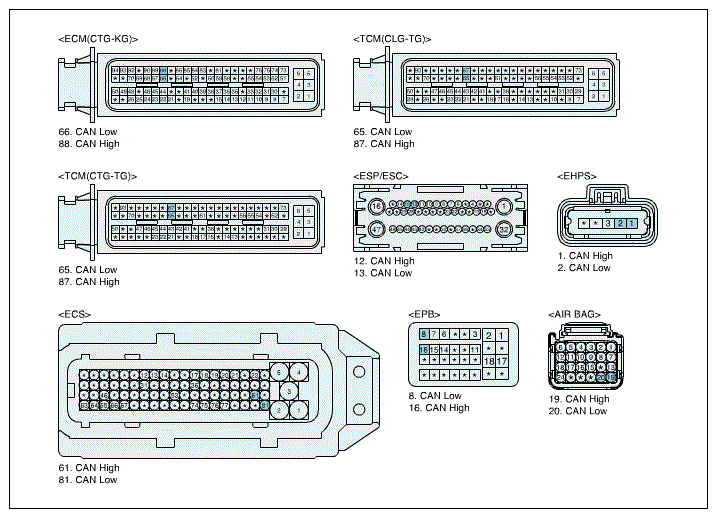

  Fig 2: Identifying ECM, TCM, EHPC, ECS Connector Terminals
  Courtesy of HYUNDAI MOTOR AMERICA

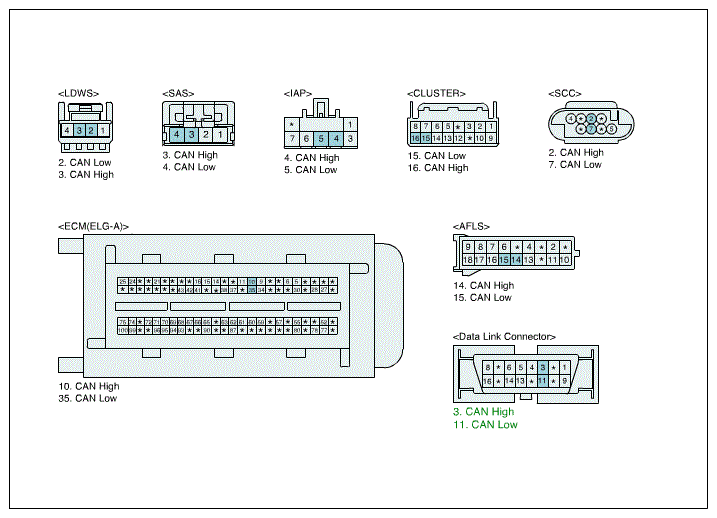

  Fig 3: Identifying SAS, IAP, SCC And Cluster Connector Terminals
  Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured resistance within specification?
  YES
  - Go to open in harness as follow
  NO
  - If the measured resistance out of range in specification, replace the unit and go to "VERIFICATION OF VEHICLE REPAIR " procedure
  - If the measured resistance below 10Ω, check open to line between CAN High and CAN Low and go to "VERIFICATION OF VEHICLE REPAIR " procedure
  - If the measured resistance infinity (Ω), check short to line between CAN High and CAN Low and go to "VERIFICATION OF VEHICLE REPAIR " procedure
CAN Communication Line Inspection 2
1. IG key "OFF".
2. Disconnect all of control module connector
3. Measure resistance between ECM connector and cluster terminal
  Specification: About 120 Ω

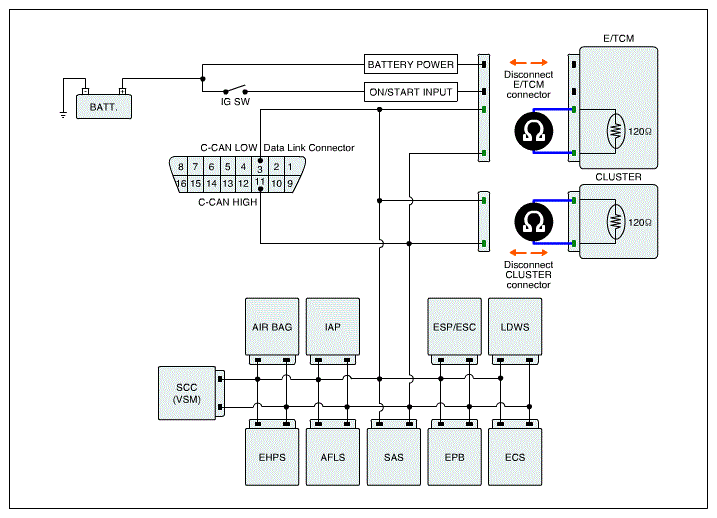

  Fig 4: Measuring Resistance Between ECM Connector And Cluster Terminal
  Courtesy of HYUNDAI MOTOR AMERICA

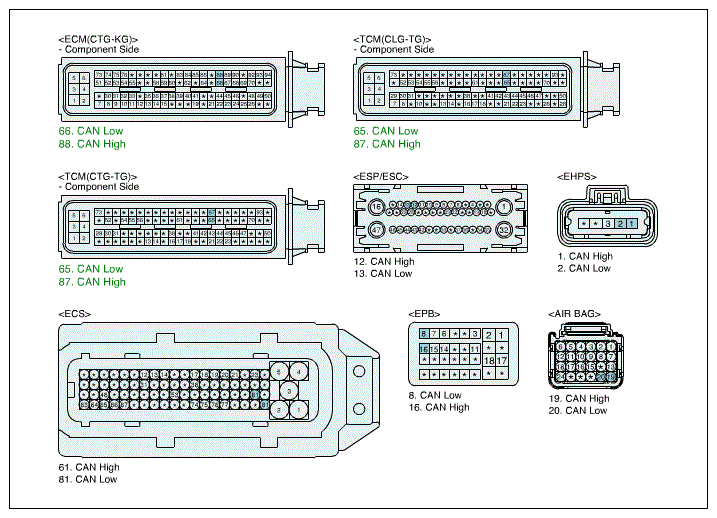

  Fig 5: Identifying ECM, TCM, EHPC, ECS Connector Terminals
  Courtesy of HYUNDAI MOTOR AMERICA

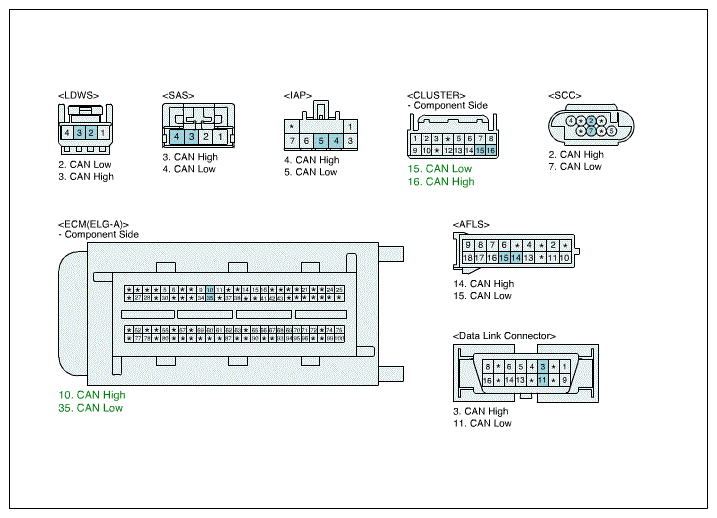

  Fig 6: Identifying SAS, IAP, SCC And Cluster Connector Terminals
  Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured resistance within specification?
  YES
  - Go to next procedure.
  NO
  - replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
