Components and Components Location: Components

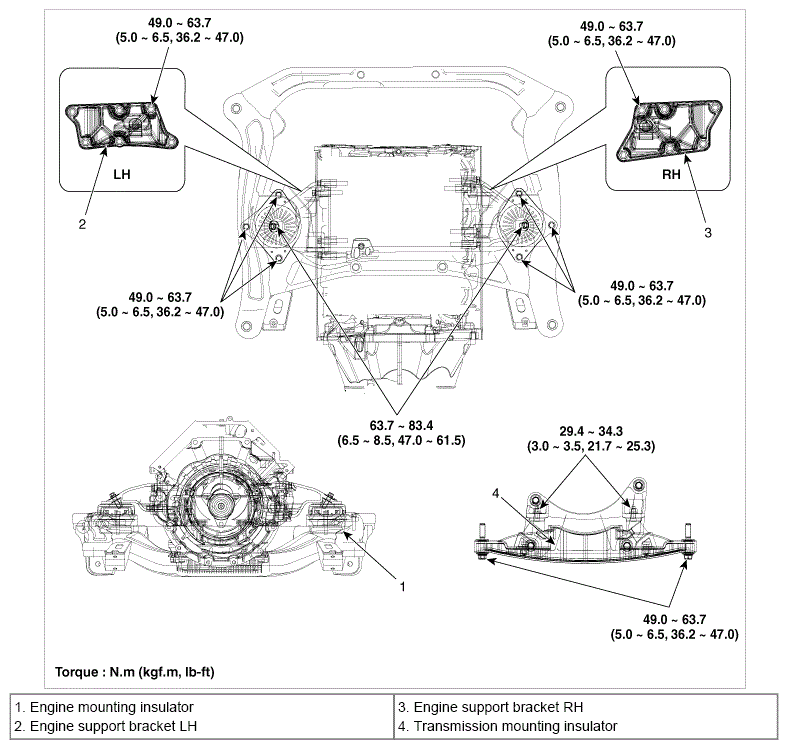

Fig 1: Engine Mounting Components With Torque Specifications
G08829584Courtesy of HYUNDAI MOTOR AMERICA
