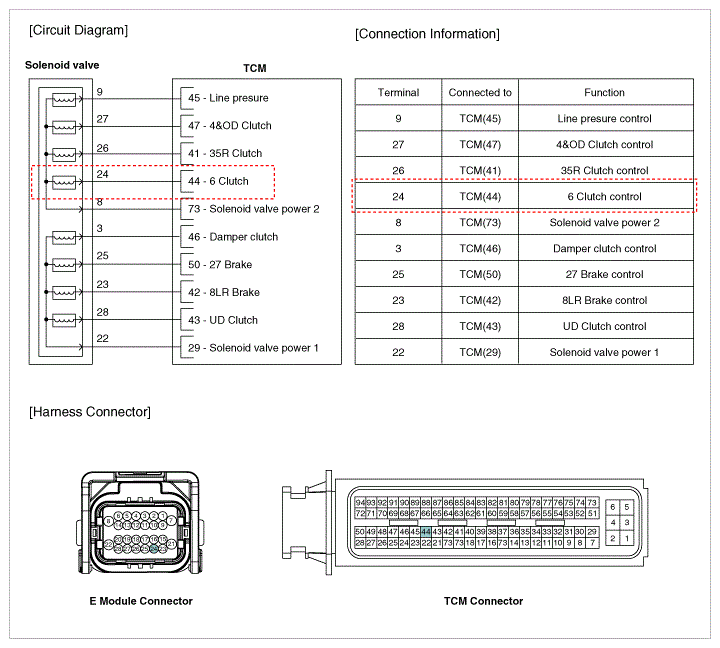

Home › Hyundai › 2012 › Equus Signature › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System › 6 Speed Clutch Control Solenoid Valve › Schematic Diagrams › Circuit Diagram
