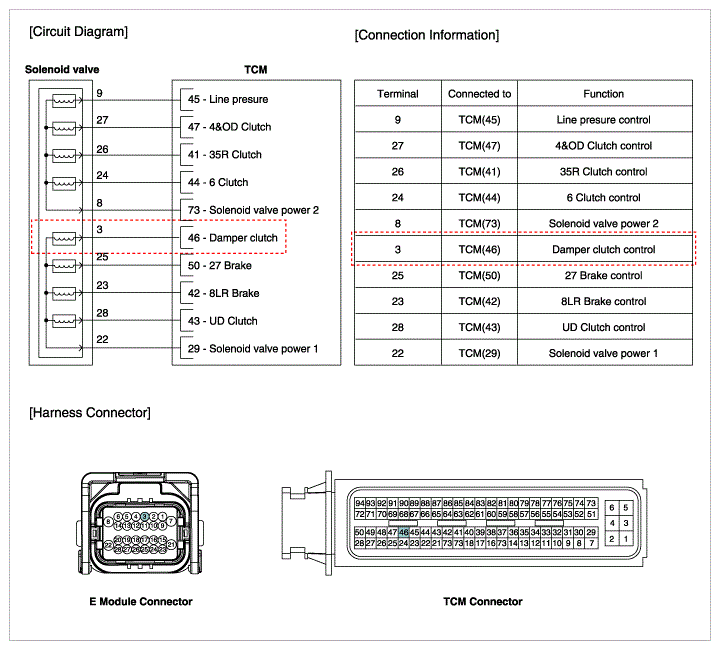

Home › Hyundai › 2012 › Equus Signature › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System › Damper Clutch Control Solenoid Valve › Schematic Diagrams › Circuit Diagram
