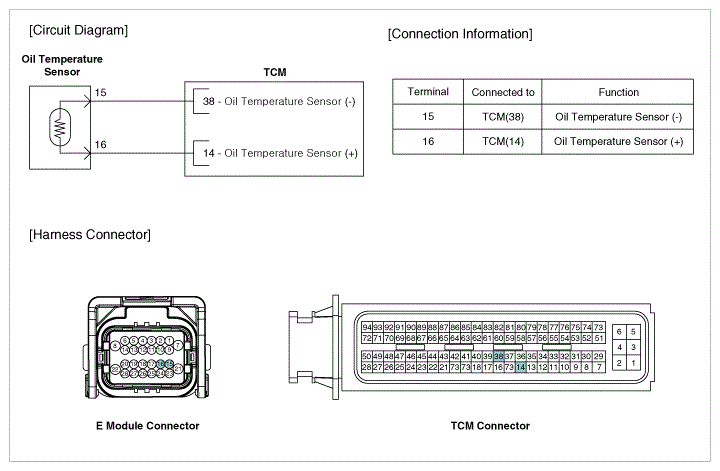

Home › Hyundai › 2012 › Equus Ultimate › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transaxle Control System › Transaxle Oil Temperature Sensor › Schematic Diagrams › Circuit Diagram
