Components and Components Location: Components

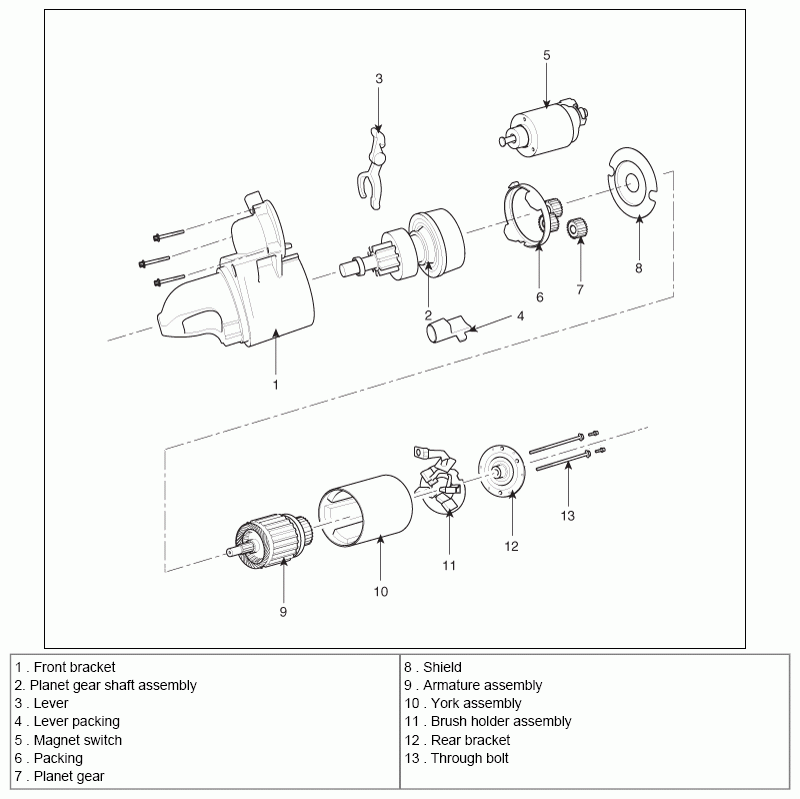

Fig 1: Identifying Starter And Related Components
G08833990Courtesy of HYUNDAI MOTOR AMERICA
