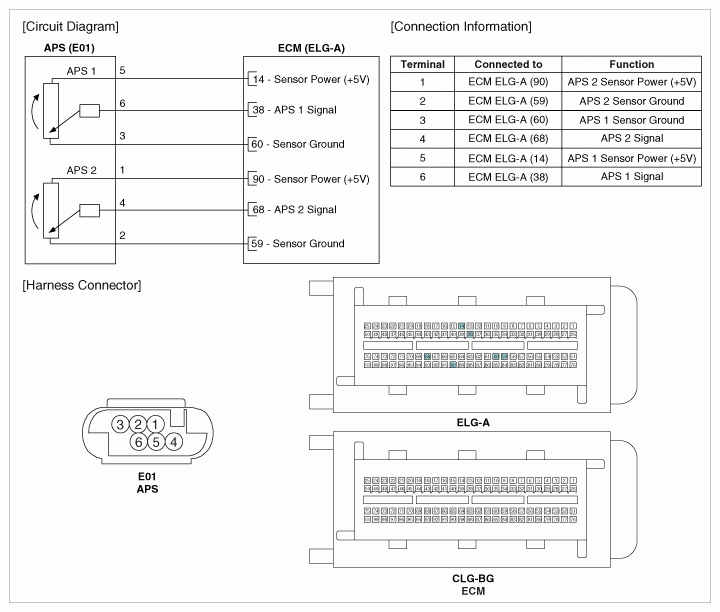

Home › Hyundai › 2012 › Genesis 3.8 › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 3.8L › Accelerator Position Sensor (APS) › Schematic Diagrams › Circuit Diagram
