Engine Control System - 3.8L
›
Crankshaft Position Sensor (CKPS)
›
Troubleshooting
›
Wave Form
Wave Form

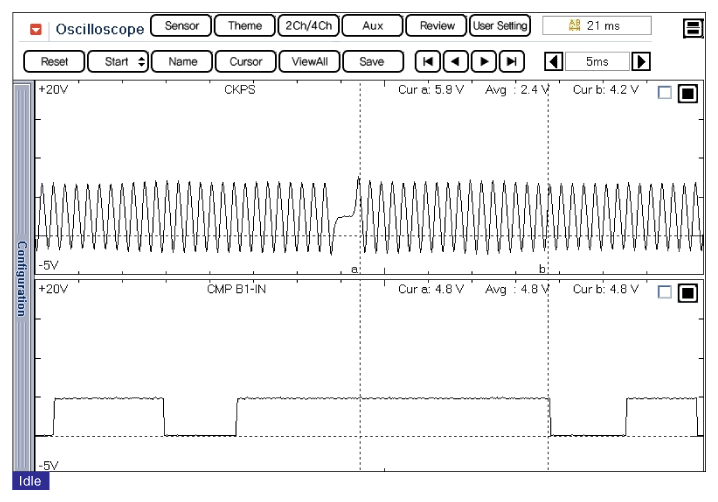

Fig 1: Display - Crankshaft Position Sensor Voltage Signal Waveform
Courtesy of HYUNDAI MOTOR AMERICA
