Wave Form

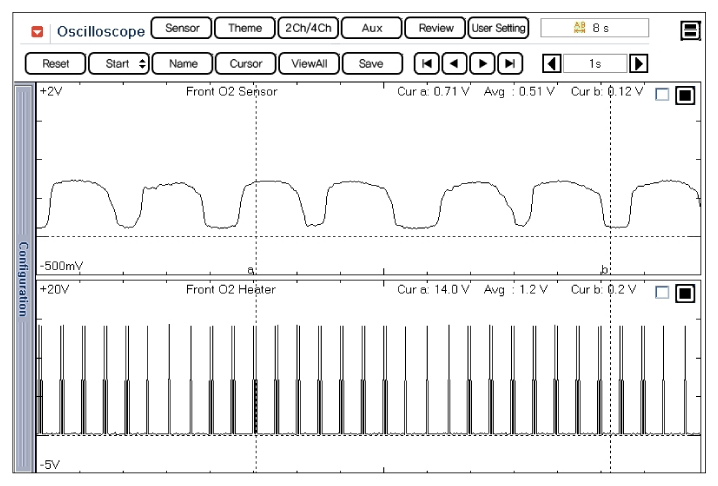

Fig 1: Display - Front Oxygen Sensor And Heater Voltage Signal Waveform
G08834168Courtesy of HYUNDAI MOTOR AMERICA

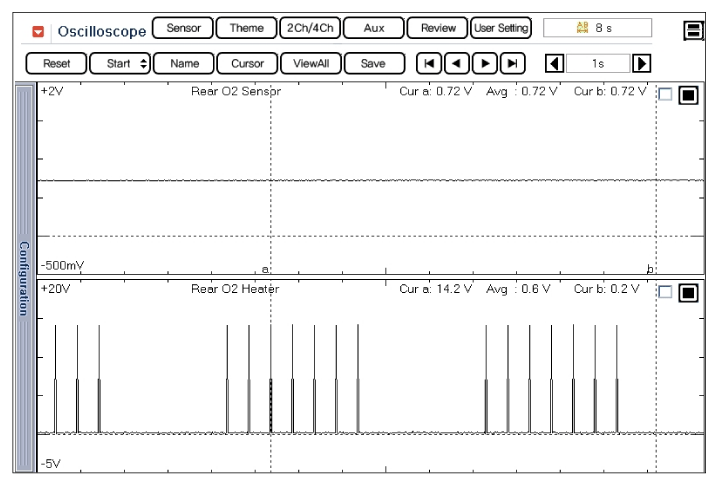

Fig 2: Display - Rear Oxygen Sensor And Heater Voltage Signal Waveform
G08834169Courtesy of HYUNDAI MOTOR AMERICA
