Navigation Touch Screen RECALIBRATION (11-BE-015)

NAVIGATION TOUCH SCREEN RECALIBRATION

TECHNICAL SERVICE BULLETIN

DESCRIPTION

This bulletin describes the procedure to recalibrate the navigation touch screen.

Applicable Vehicles:  Elantra (MD/UD), Tucson (LM), Genesis Coupe (BK), Sonata (YF), Genesis (BH). Santa Fe (CM) with touch screen navigation only.

Warranty Information:

NO APPLICABLE WARRANTY

SERVICE PROCEDURE

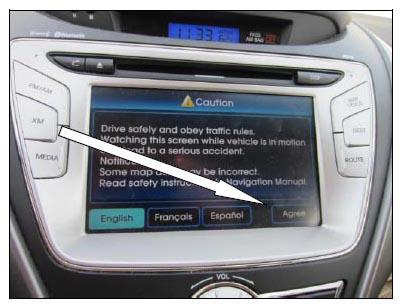

1. Press "Agree".
   NOTE: All pictures are from an Elantra (UD/MD)

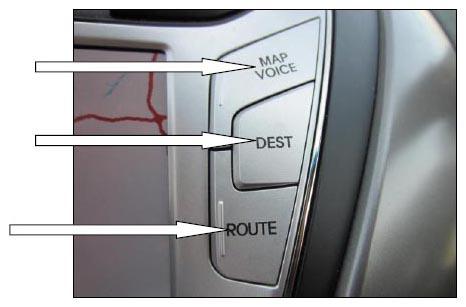

2. Press the following sequence:
   1. MAP VOICE x2 (press twice)
   2. DEST x2 (press twice)
   3. ROUTE x2 (press twice)
   4. MAP VOICE x1 (press once)
   5. DEST x2 (press twice)
   6. ROUTE x2 (press twice)
   7. Repeat steps "d-f" above until you see "+" on the screen

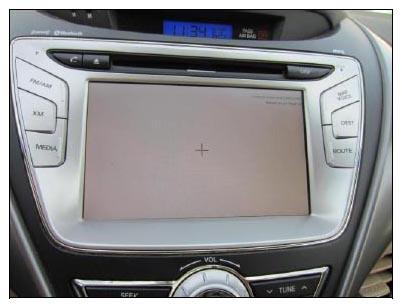

3. If successful, the screen shown below will appear.

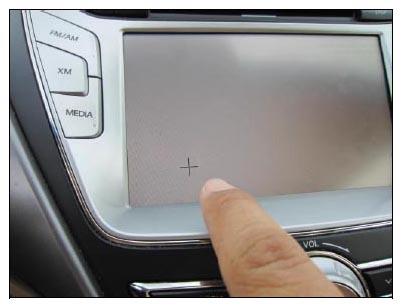

4. Press and hold "+" until it moves.

   Repeat until "+" disappears.

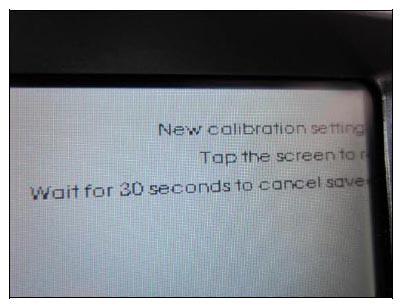

5. After "+" disappears press the screen once to save setting within 30 seconds.
   WARNING: Press screen within 30 seconds to save settings.

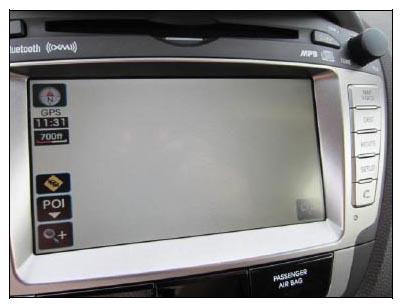

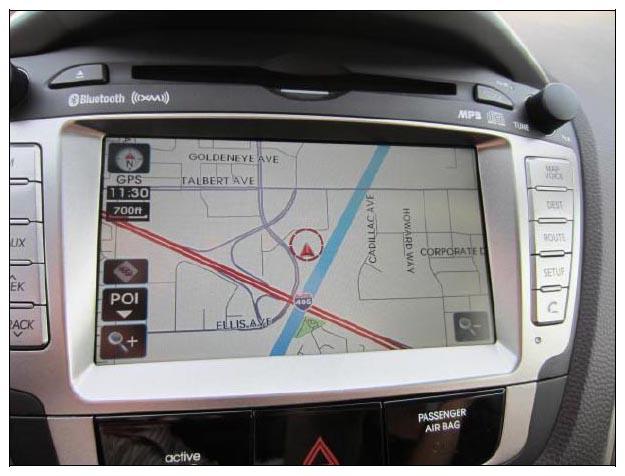

6. Screen may momentarily be blank. Wait until the map is fully loaded.

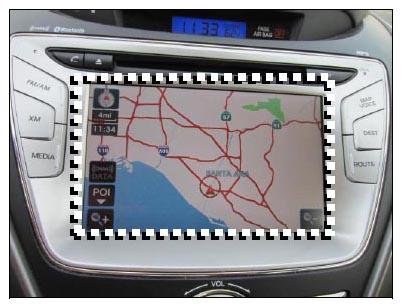

7. Check all touch screen functions.
