Power Circuit Inspection

Check voltage
1. IG "OFF" and disconnect SCC connector.
2. IG "ON"
3. Measure the voltage between on/start input terminal of SCC and chassis ground.
  Specification: above 10V

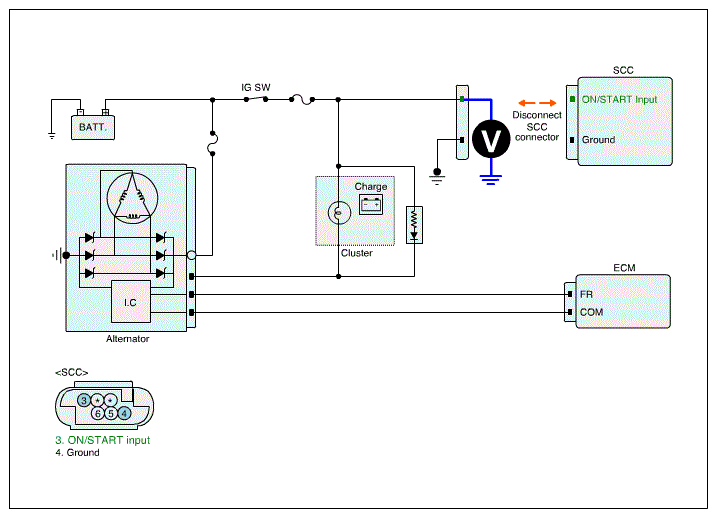

  Fig 1: Measuring Voltage Between On/Start Input Terminal Of SCC And Chassis Ground
  Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured voltage within specification?
  YES
  - Go to "COMPONENT INSPECTION " as follows.
  NO
  - Check 10A cruise fuse is open or not installed.
  - Repair open or short in harness and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
