Chart 1

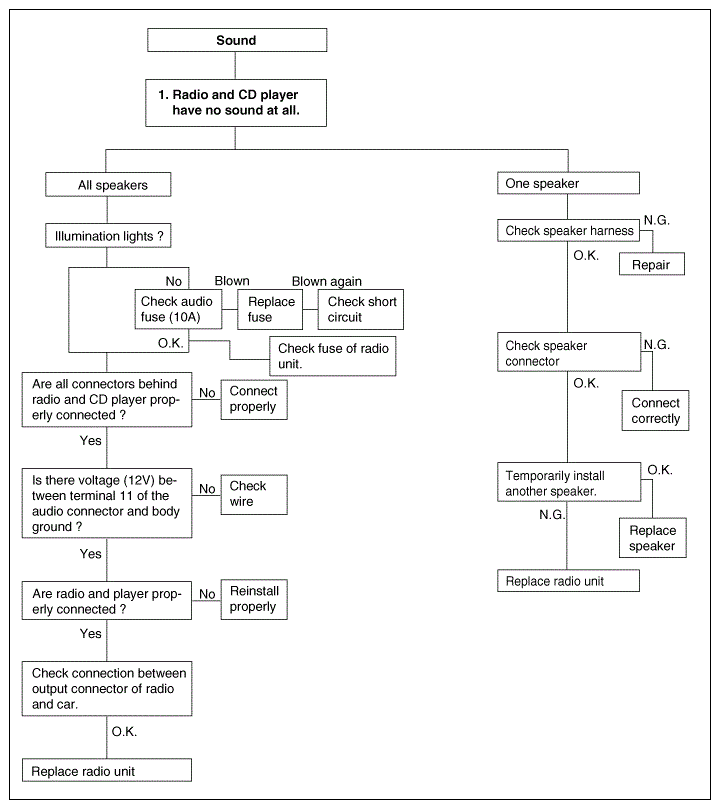

Fig 1: Body Electrical System Troubleshooting Flowchart (Chart 1, 1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Body Electrical System Troubleshooting Flowchart (Chart 1, 2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA
