Components and Components Location: Component

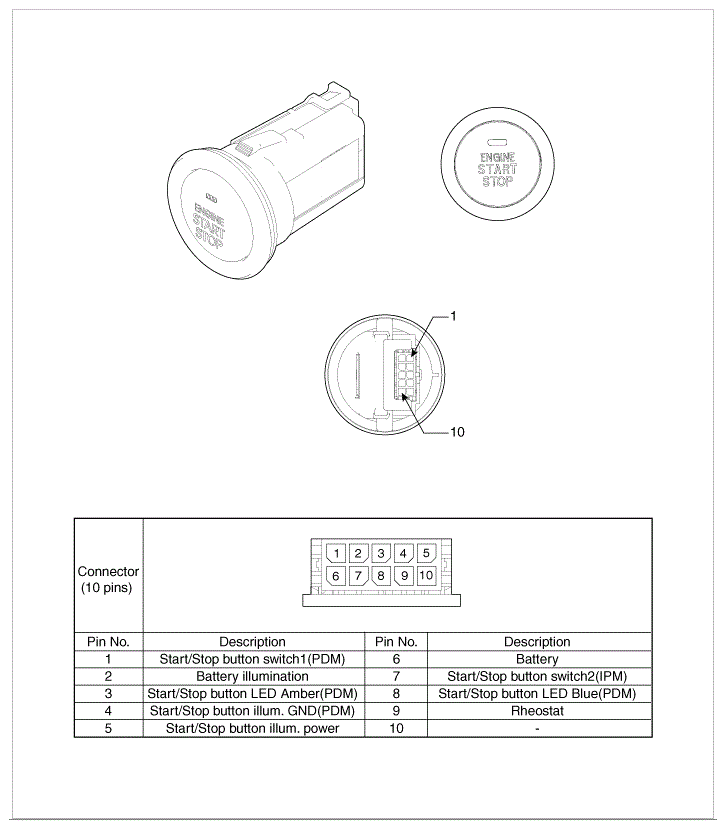

Fig 1: Identifying Start/Stop Button And Related Components
G08838840Courtesy of HYUNDAI MOTOR AMERICA
