Components and Components Location: Components

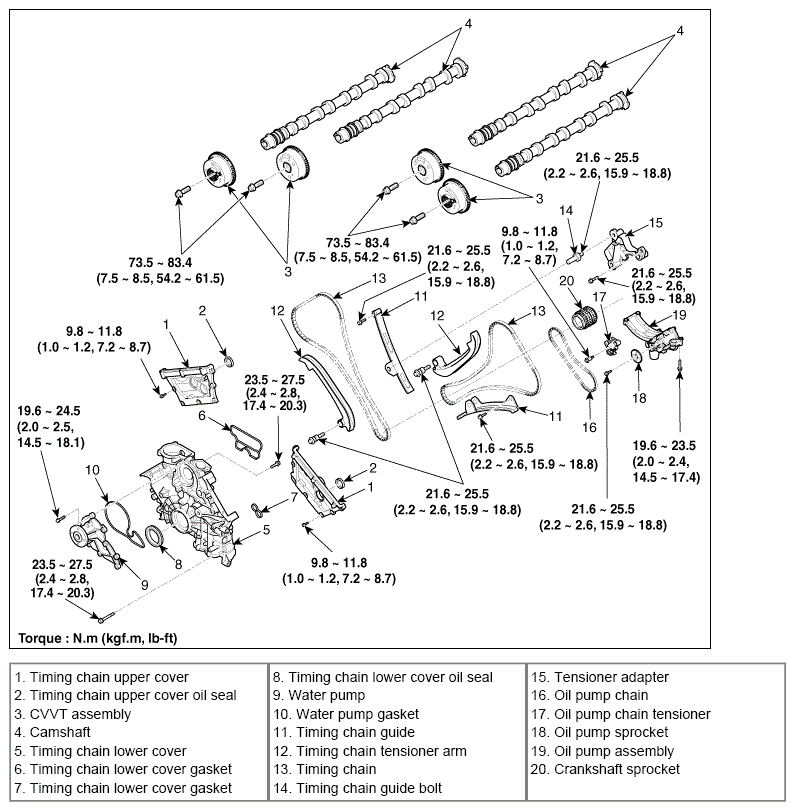

Fig 1: Timing Chain Replacement Components With Torque Specifications
G08818775Courtesy of HYUNDAI MOTOR AMERICA
