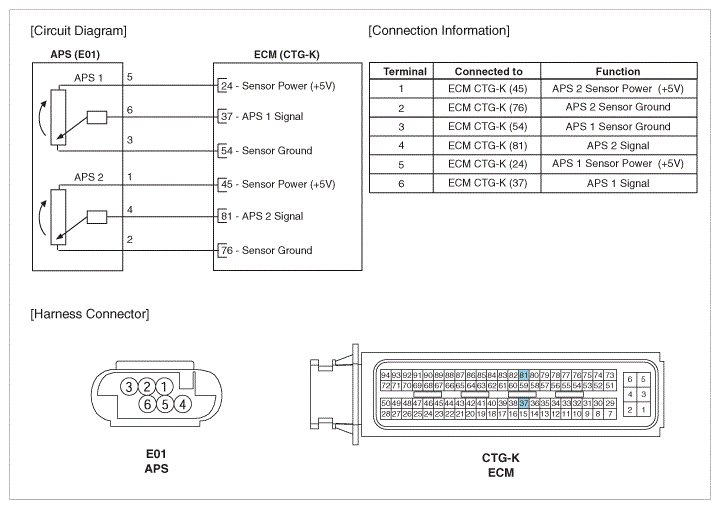

Home › Hyundai › 2012 › Genesis 4.6 › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 4.6L › Accelerator Position Sensor (APS) › Schematic Diagrams › Circuit Diagram
