Wave Form

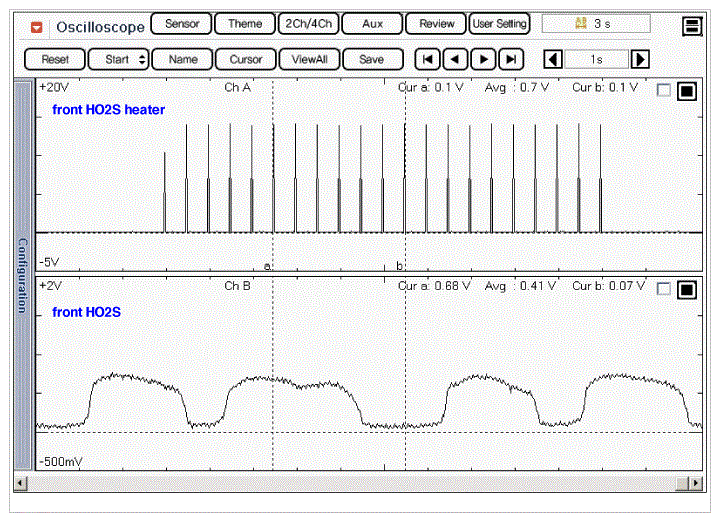

Fig 1: Display - Signal Waveforms Of Front HO2S (Upper) And Heater (Lower) At Idle
G08819208Courtesy of HYUNDAI MOTOR AMERICA

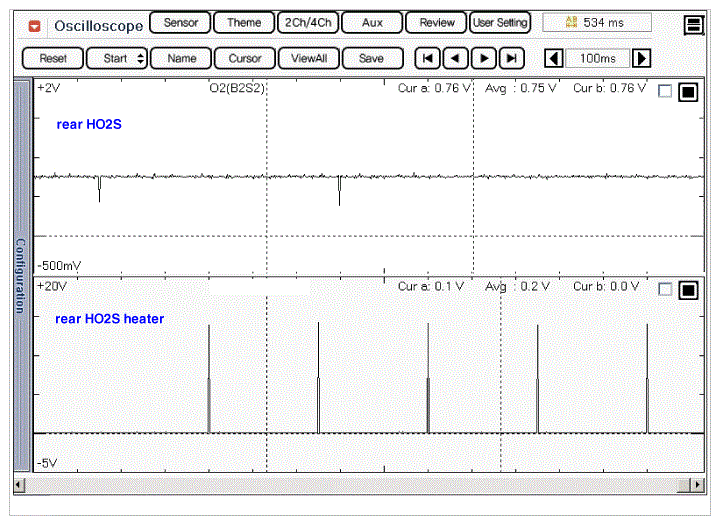

Fig 2: Display - Signal Waveforms Of Rear HO2S (Upper) And Heater (Lower) At Idle
G08819209Courtesy of HYUNDAI MOTOR AMERICA

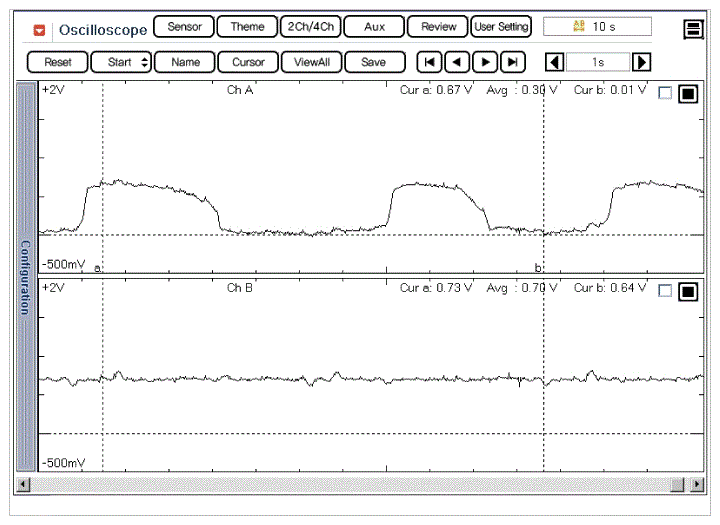

Fig 3: Display - Typical Waveforms Of Front HO2S (Upper) And Rear HO2S (Lower)
G08819210Courtesy of HYUNDAI MOTOR AMERICA
