Component Inspection

WARNING: This page is about a different variant/trim than selected.

Check the rain sensor
1. IG "ON" and engine "OFF".
2. Connect FAM connector.
3. Connect multi-function switch connector.
4. Check whether the rain sensor is mounted on the windshield normally.
  Specification: A wiper works normal under AUTO mode.

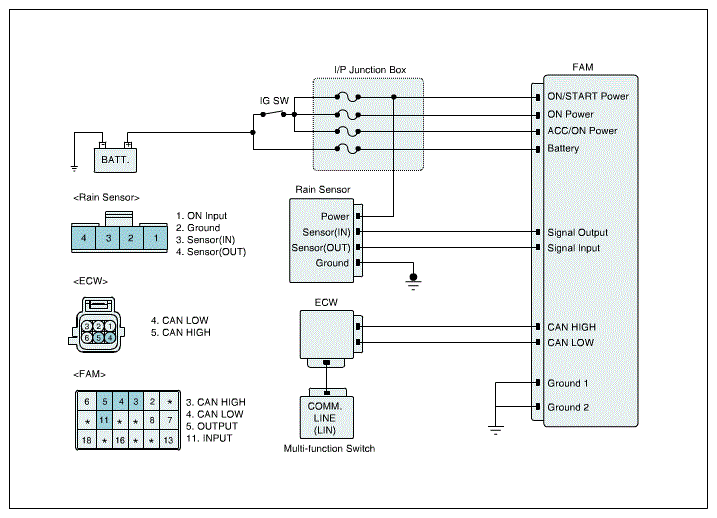

  Fig 1: Rain Sensor And FAM - Circuit Diagram
  Courtesy of HYUNDAI MOTOR AMERICA

  Fig 2: Identifying Rain Sensor And Windshield
  Courtesy of HYUNDAI MOTOR AMERICA
5. Do wipers work normal and Is the rain sensor mounted on the windshield in good?
  YES
  - Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
