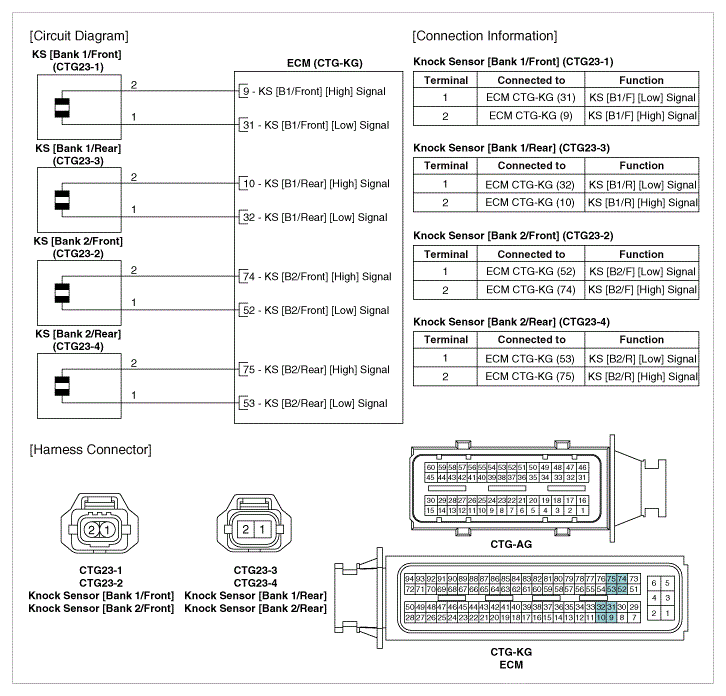

Home › Hyundai › 2012 › Genesis 5.0 R-Spec › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 5.0L › Knock Sensor (KS) › Schematic Diagrams › Circuit Diagram
