Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim panel (Refer to the FRONT DOOR )
  3. Remove the door module (DDM) (A) from the front door trim panel after disconnecting module connector.

    Be careful not to damage the door module removing the clip.

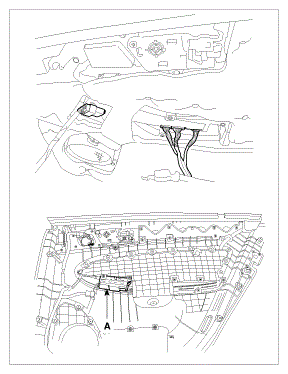

    Fig 1: Identifying Driver Door Module
    G08838899Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the door module (A) from the front door trim panel.
    Fig 2: Identifying Front Door Trim Panel Door Module
    G08838900Courtesy of HYUNDAI MOTOR AMERICA
