Interior B
Interior B

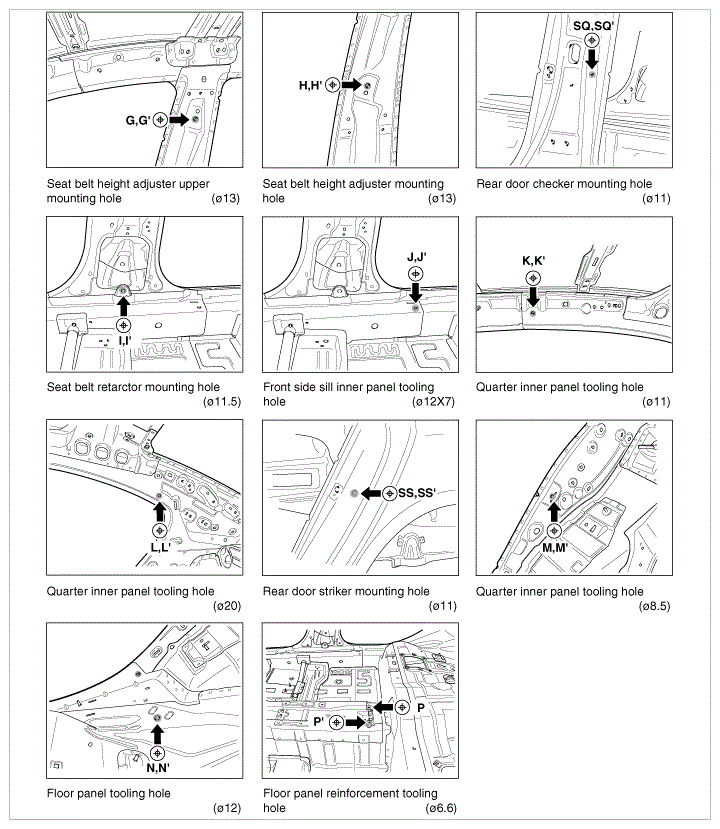

Fig 1: Identifying Interior B Actual-Measurement Dimensions
Courtesy of HYUNDAI MOTOR AMERICA

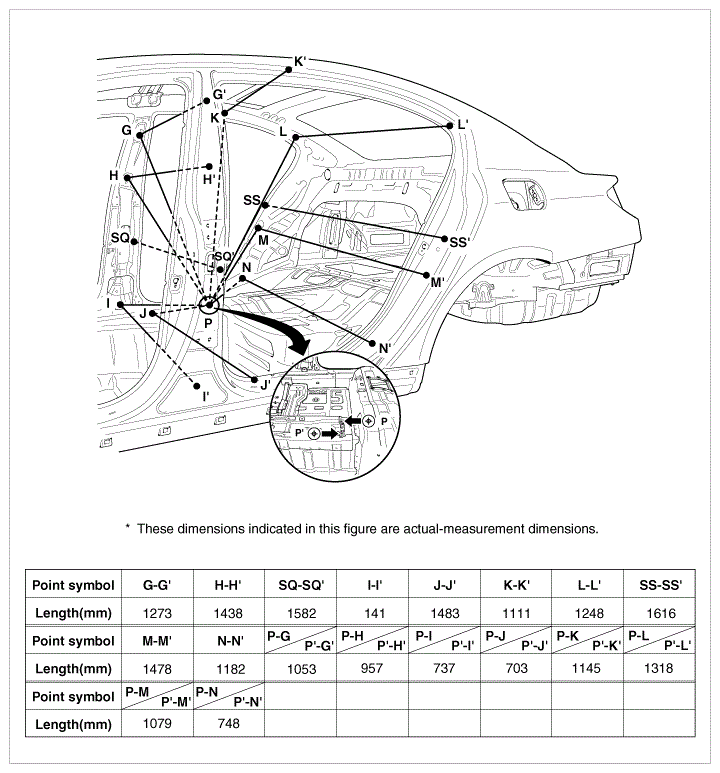

Fig 2: Locating Interior B Dimension Measurement Points
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
