Home › Hyundai › 2012 › Genesis 5.0 › Repair and Diagnosis › Body & Frame › Mirrors › Power Mirrors › Power Mirror Switch › Components and Components Location › Components

Components and Components Location: Components

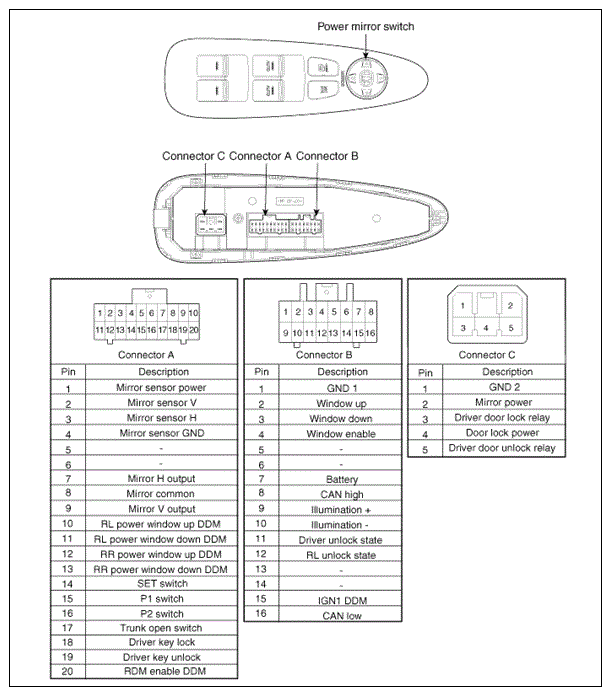

Fig 1: Identifying Power Mirror Switch And Connectors
G08853400Courtesy of HYUNDAI MOTOR AMERICA
