Home › Hyundai › 2012 › Genesis 5.0 › Repair and Diagnosis › Electrical › Starter › Button Engine Start System › ESCL (Electronic Steering Column Lock) › Components and Components Location › Component

Components and Components Location: Component

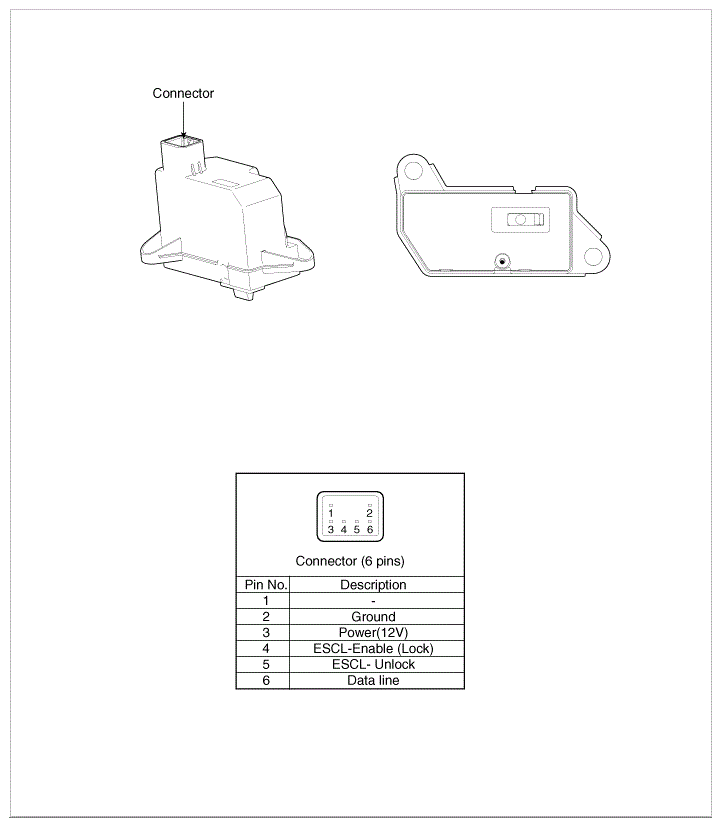

Fig 1: Identifying Electronic Steering Column Lock And Related Components
G08838847Courtesy of HYUNDAI MOTOR AMERICA
