Components and Components Location: Components

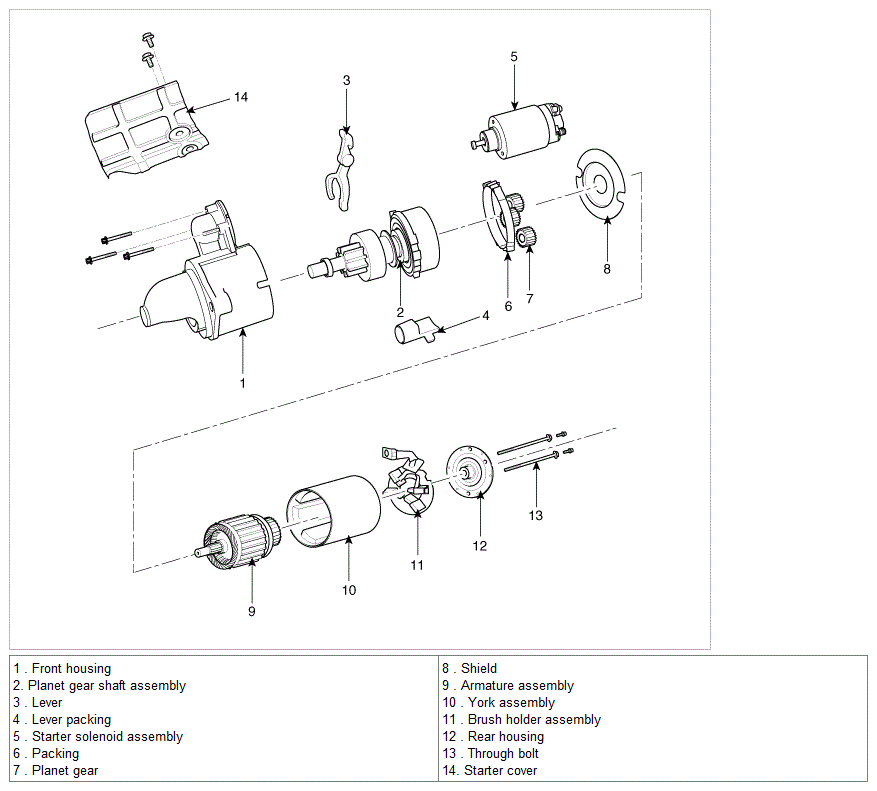

Fig 1: Identifying Starter Components
G08822711Courtesy of HYUNDAI MOTOR AMERICA
