Components and Components Location: Components

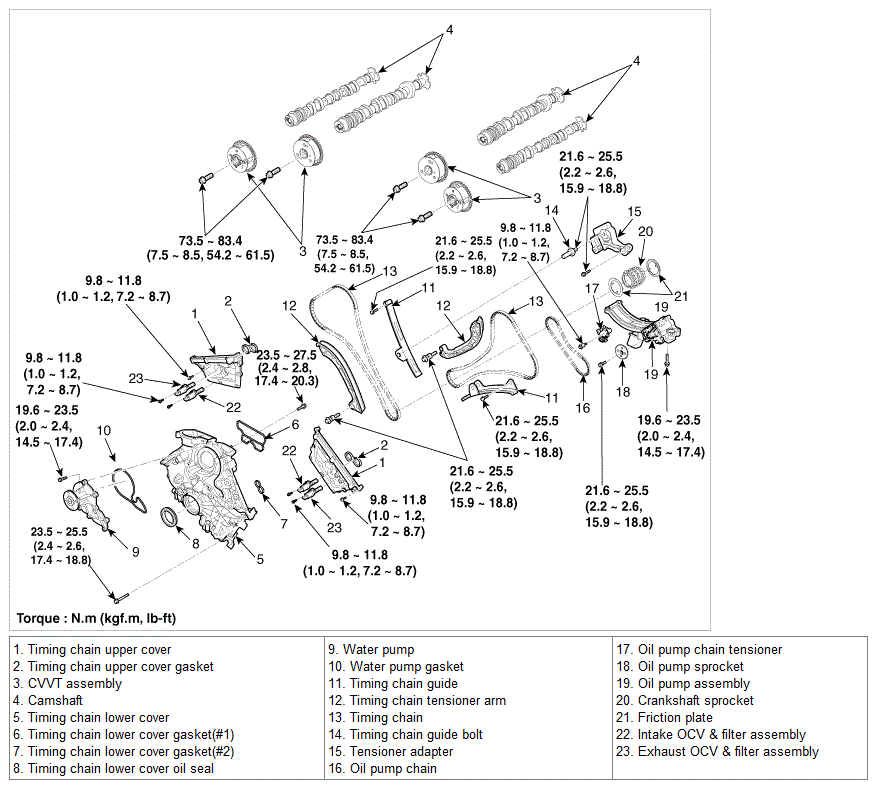

Fig 1: Timing Chain Replacement Components With Torque Specifications
G08822255Courtesy of HYUNDAI MOTOR AMERICA
