Components and Components Location: Components

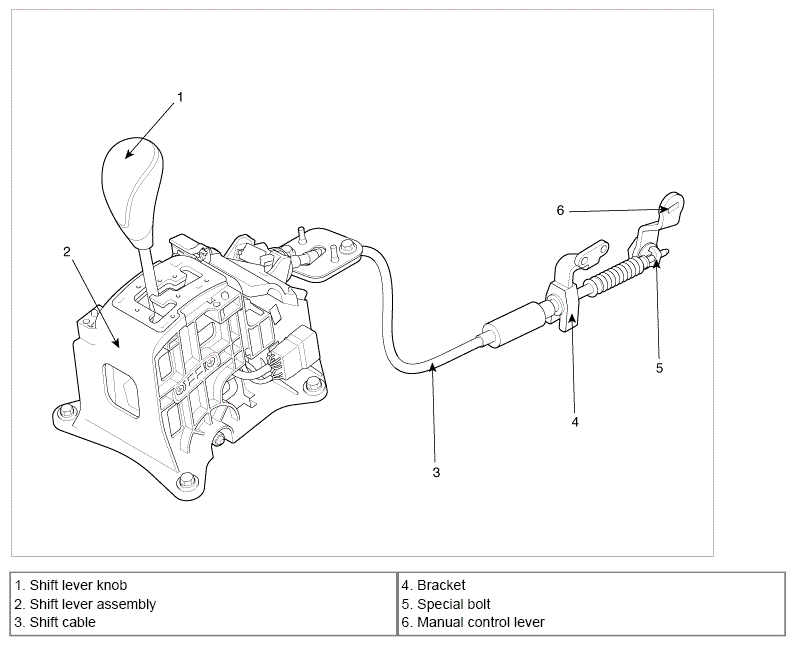

Fig 1: Identifying Shift Lever Components
G08819363Courtesy of HYUNDAI MOTOR AMERICA
