Smart Key Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

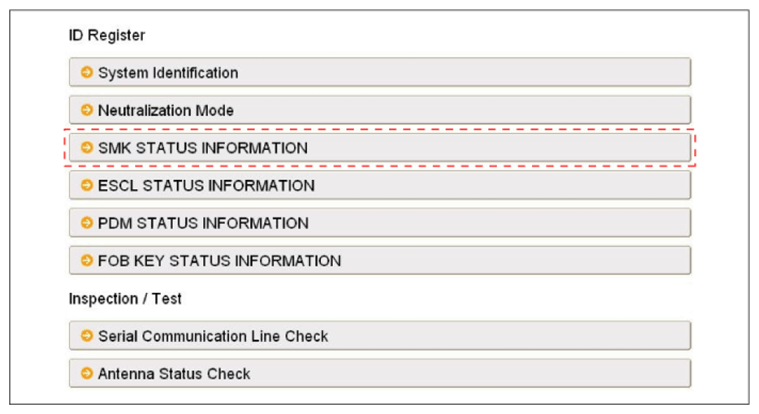

    Fig 1: GDS Screen Display - SMK Status Information (1 Of 2)
    G06510041Courtesy of HYUNDAI MOTOR CO.

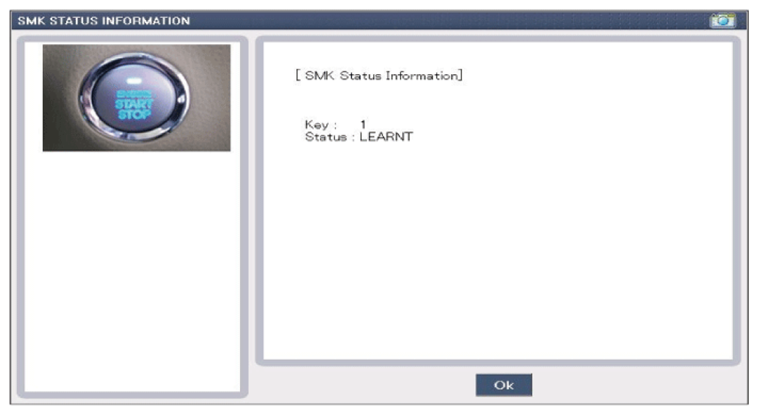

    Fig 2: GDS Screen Display - SMK Status Information (2 Of 2)
    G06510042Courtesy of HYUNDAI MOTOR CO.
