Component (2)

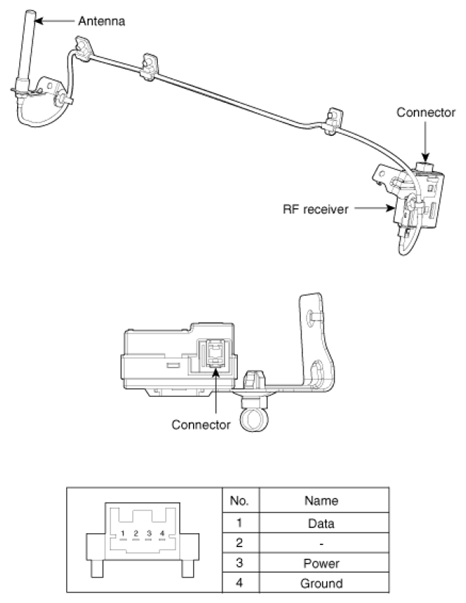

Fig 1: Identifying Antenna, RF Receiver, Connector, & Terminals (2012)
G06510083Courtesy of HYUNDAI MOTOR CO.

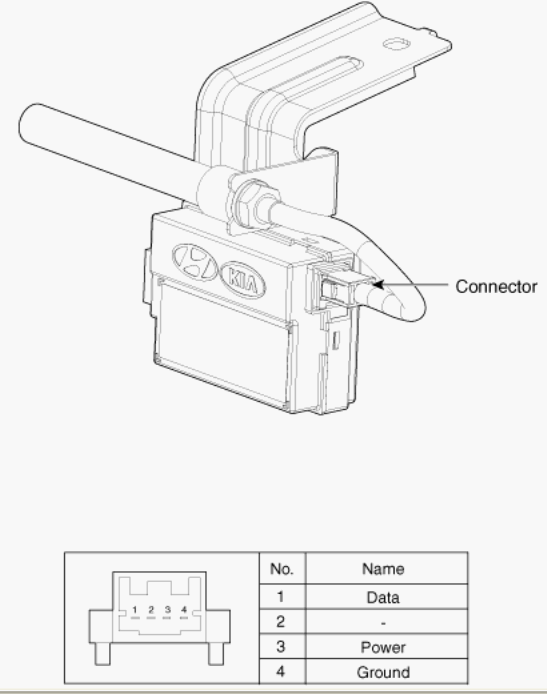

Fig 2: Identifying Antenna, RF Receiver, Connector, & Terminals (2013)
G00537468Courtesy of HYUNDAI MOTOR CO.
