RF Receiver (2013)
RF Receiver (2013)
Disconnect the negative (-) battery terminal.
Remove the rear seat.
Remove the package tray trim.
Disconnect the connector after loosening the RF receiver (A) bolt (1EA).

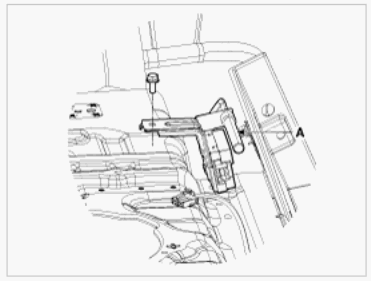

Fig 1: Identifying RF Receiver & Bolt
Courtesy of HYUNDAI MOTOR CO.
