Circuit Diagram
›
Driver Power Window Switch
Driver Power Window Switch

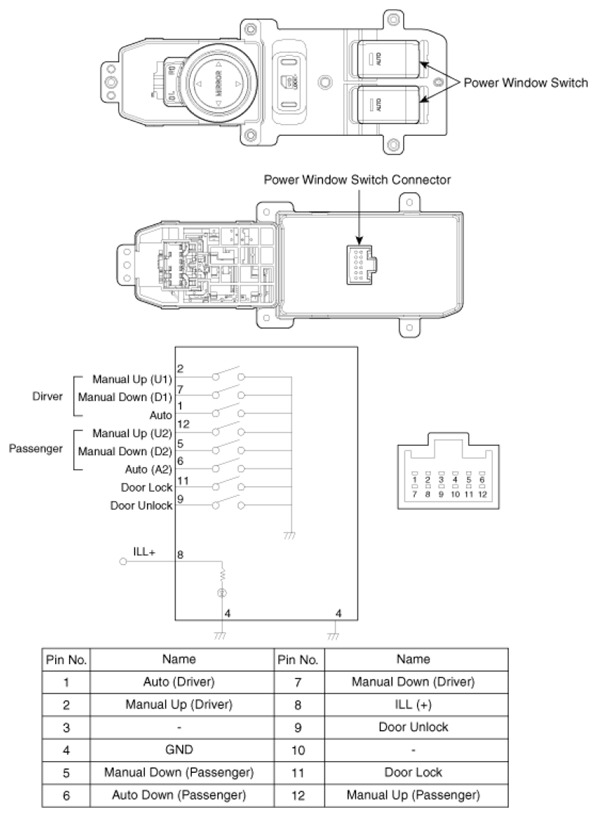

Fig 1: Identifying Driver Power Window Switch, Connector, & Terminals
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
