Components and Component Locations: Components

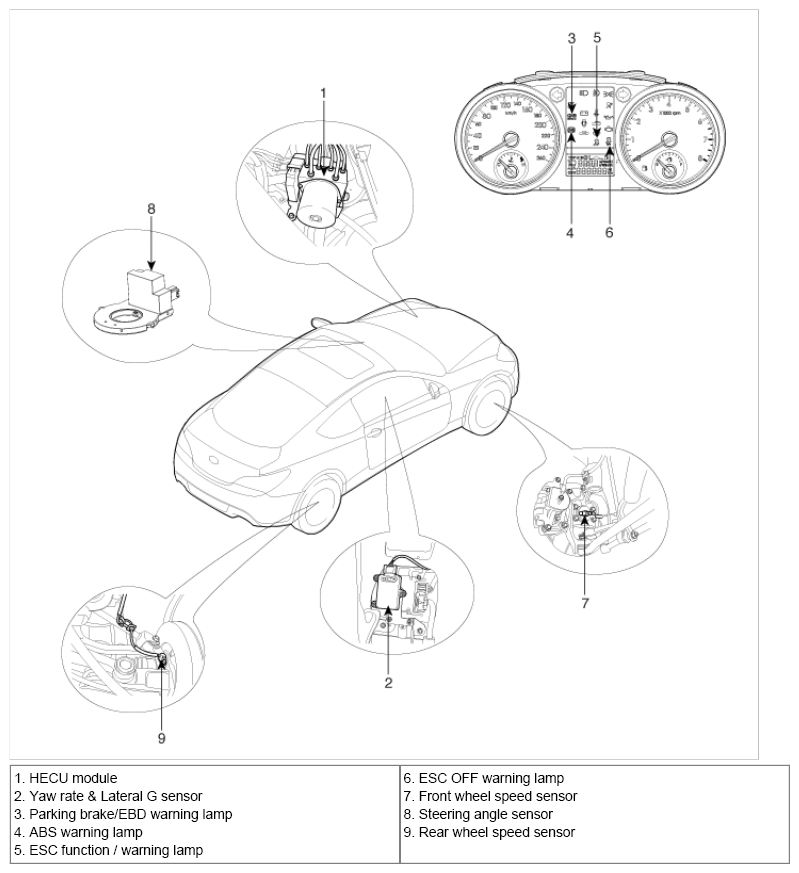

Fig 1: Locating ESC System Components
G06513329Courtesy of HYUNDAI MOTOR CO.
