Components and Component Locations: Component

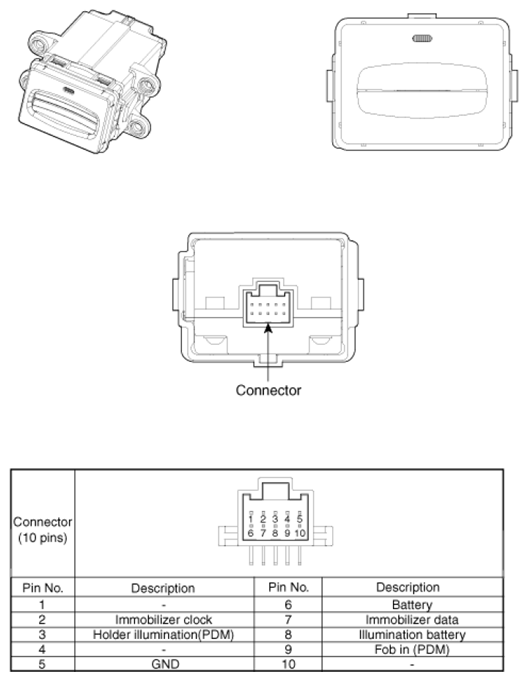

Fig 1: Identifying Fob Holder, Connector, & Terminals
G06510235Courtesy of HYUNDAI MOTOR CO.
