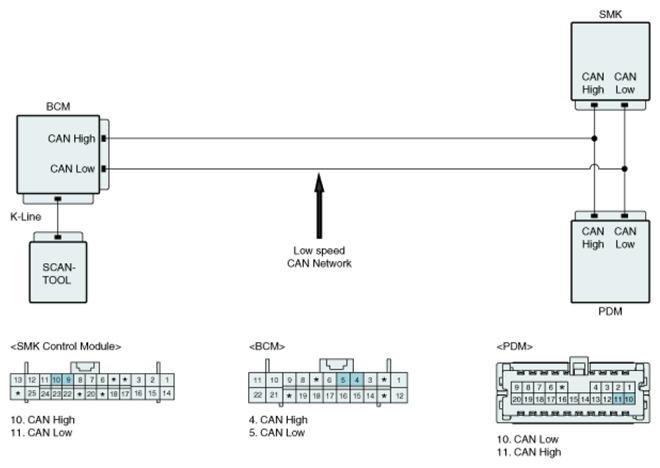

Home › Hyundai › 2012 › Genesis Coupe 2.0T, Automatic Trans › Repair and Diagnosis › Electrical › Starter › Button Engine Start System › PDM (Power Distribution Module) › DTC B1602: CAN Error › Diagnostic Circuit Diagram
