Components and Component Locations: Component

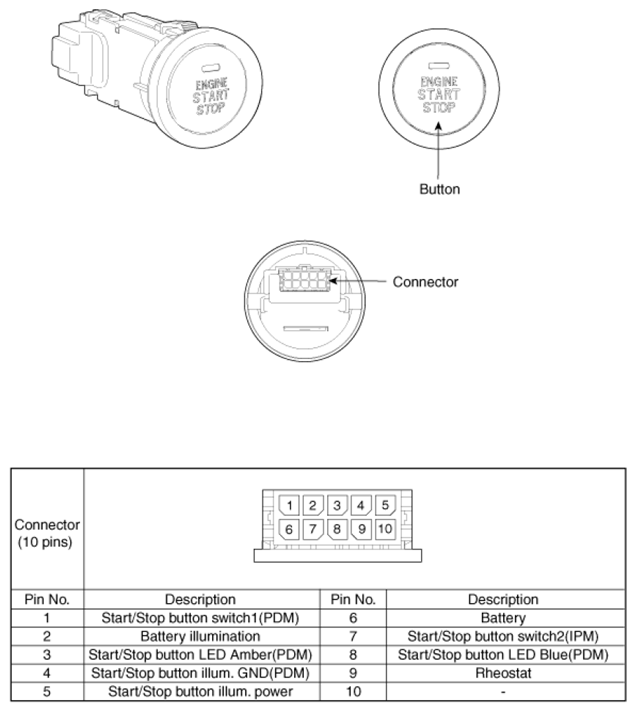

Fig 1: Identifying Start/Stop Button, Connector, & Terminals
G06510232Courtesy of HYUNDAI MOTOR CO.
