Home › Hyundai › 2012 › Genesis Coupe 2.0T, Automatic Trans › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transmission Control System - 2.0L › Shift Lever › Components and Components Location › Components

Components and Components Location: Components

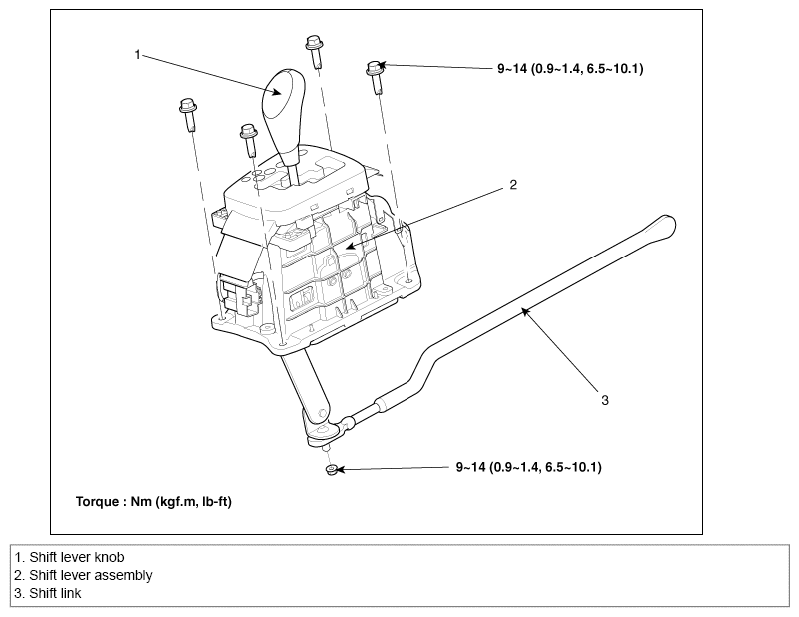

Fig 1: Shift Lever Replacement Components With Torque Specifications
G06514484Courtesy of HYUNDAI MOTOR CO.
