Schematic Diagrams
›
Circuit Diagram
›
Assist Power Window Switch
Assist Power Window Switch

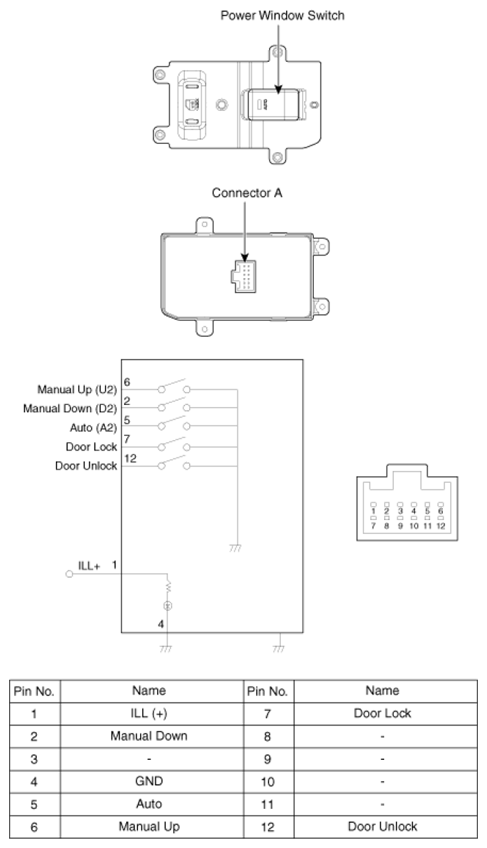

Fig 1: Identifying Assist Power Window Switch, Connector, & Terminals
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
